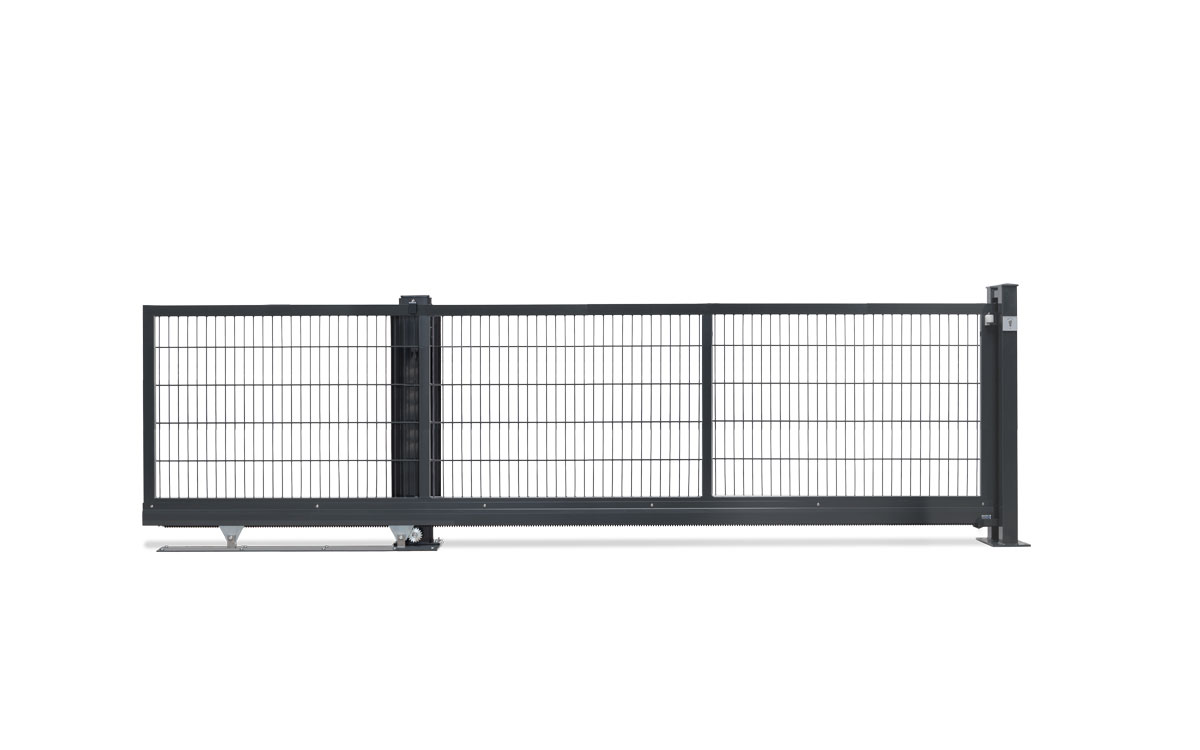

V-Star F60 Welded Wire Fence 8/6/8 mm
Artikelnummer: ZSVSIMMA3512B7016
Product information "V-Star F60 Welded Wire Fence 8/6/8 mm"
Technical Data:
- Welded construction with aluminum roller track profile type LRP 83A
- Roller supports as double load-bearing rollers, ball-bearing mounted
- Filling: MAX 8/6/8
- Clear widths: 3500 mm and 4500 mm
- Height (including ground clearance): 1000 mm to 2000 mm
- Pair of inlet posts for bolting down with guide fork and roller shoe
- Guide post mounted on roller carriage base plate
- Foundation plan & installation instructions

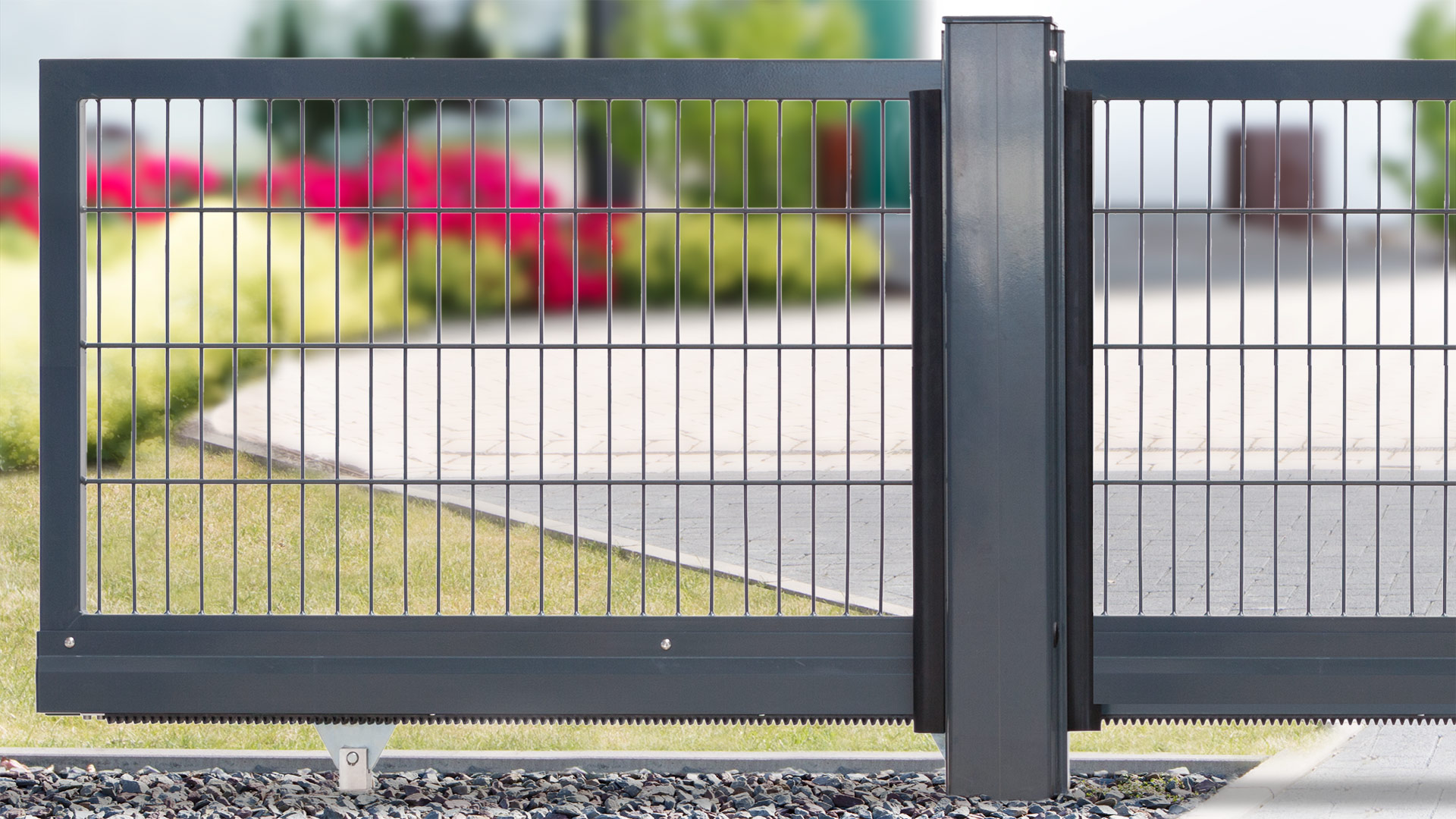

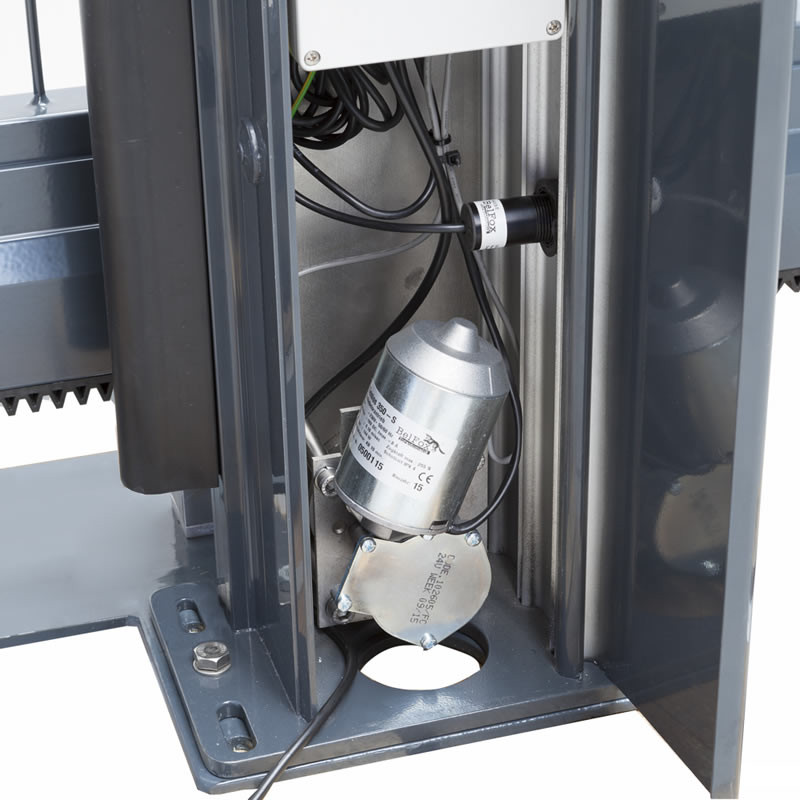

The V-Star F60 is a lightweight sliding gate designed for residential use, combining versatility, sophisticated engineering, and attractive design. Thanks to its excellent balance and smooth operation, it can easily be operated manually. The manual version comes standard with a Locinox sliding gate lock and can be upgraded with an electric drive and remote control. The electric version features a Belfox drive, which can be operated via radio or other switching devices.
The gate is pre-assembled and factory-tested.
On-Site Sliding Gate Installation"Once the gate is on-site, simply bolt the base plate and inlet posts to the foundation – there’s no additional work required."
| Antrieb: | E-Antrieb nebenstehend |
|---|---|
| width: | 3000 mm, 4000 mm |
Produktdetails
- Antrieb: E-Antrieb integriert
- Color: anthracite
- Height: 1200 mm
- width: 3500 mm
