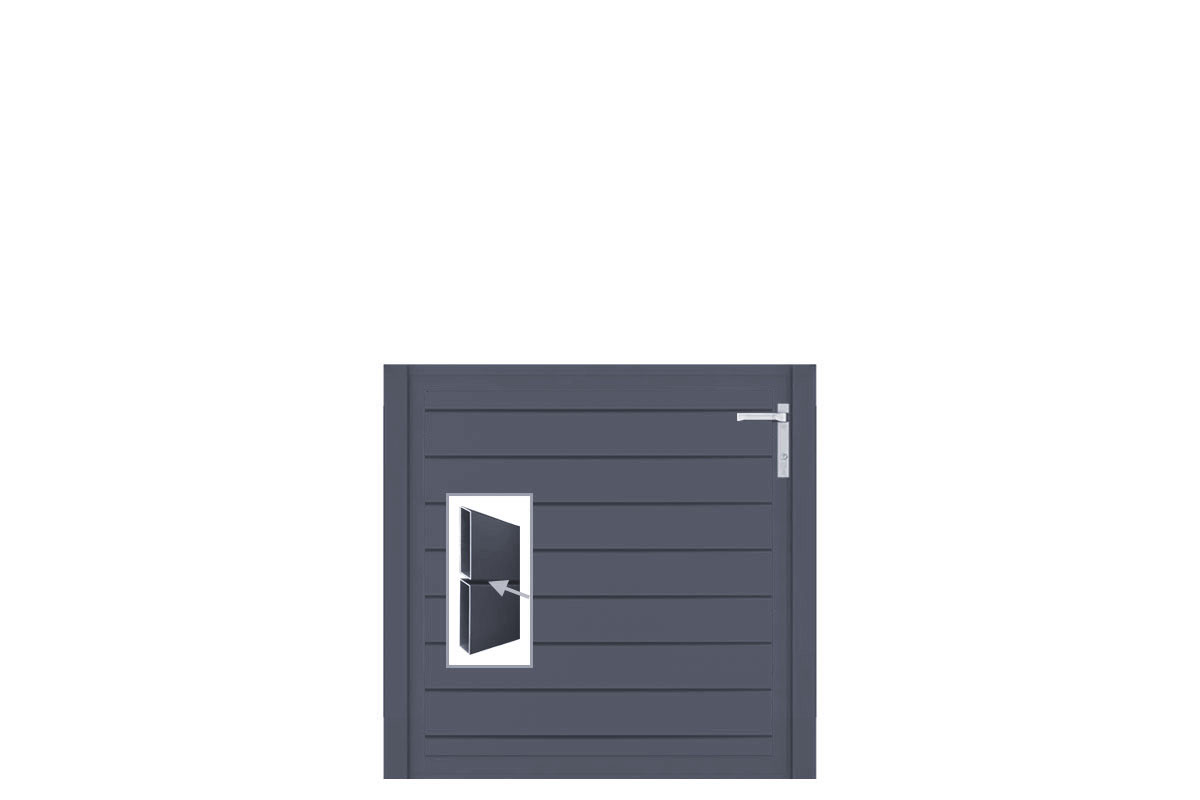

VIDUAL swing pure 100
Artikelnummer: VDSWP1100OR091010B7016FS
Product information "VIDUAL swing pure 100"
For the VIDUAL fence panel series, we also offer matching privacy gates – even for individually designed fences, suitable gates can be configured. These gates are manufactured with the same high quality as our fence profiles and are characterized by their easy installation. They are the ideal addition to create a complete and reliable privacy solution for the entrance to your garden.
Gate VIDUAL swing – Type S
- Gate heights: 980 mm, 1200 mm, 1420 mm, 1530 mm, 1750 mm
- Variant: single-leaf gate system
- Opening direction: 180°
- Clear widths: 1040 mm, 1330 mm
- Frame: rectangular tube 60 / 65 mm
- Material: aluminium, powder-coated
- Colours: RAL 7016 FS (Anthracite Grey, fine texture), Dark Oak

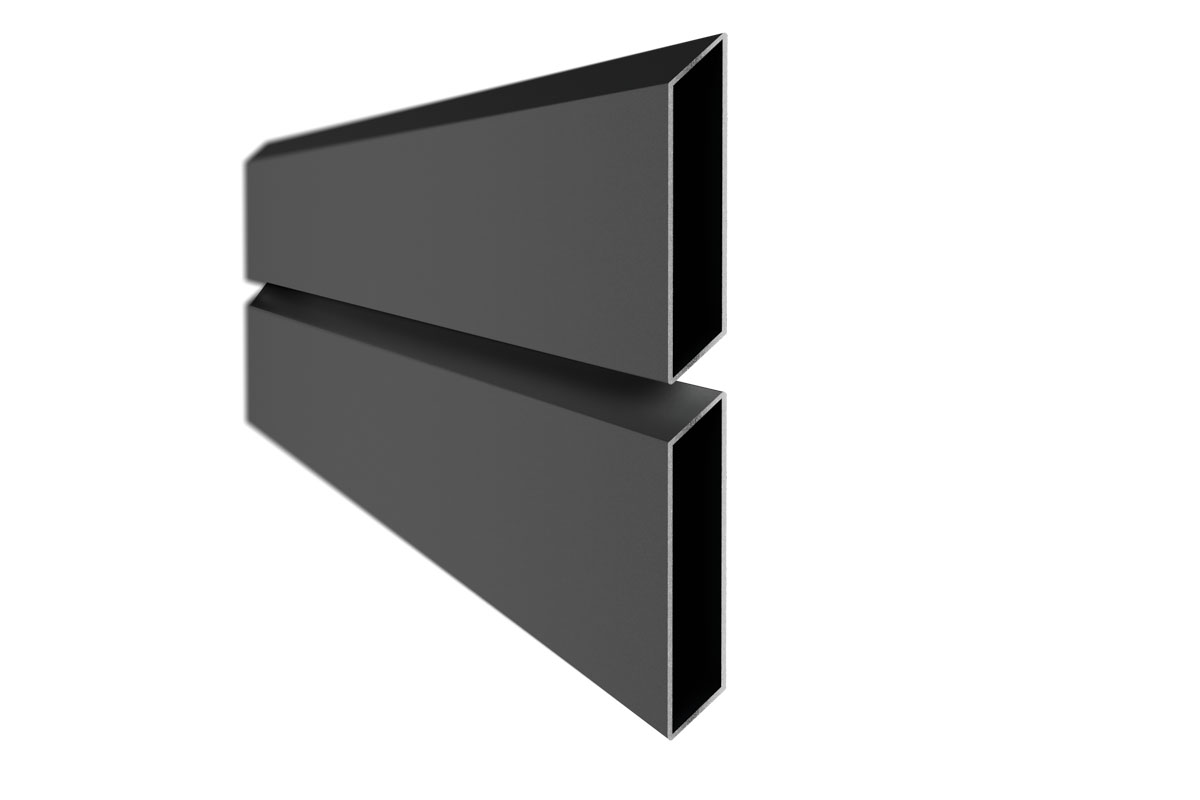

- Filling: VIDUAL pure 100 – 7016 FS, Dark Oak
- Spacer pieces: 10 mm
- Gate posts: fence posts provided on site
- Including matching accessory set
Fillings
- Optional fillings from the VIDUAL series
- Mortise lock incl. profile cylinder
- Aluminium handle set
- Long backplate
- Top / bottom rail: 56 × 68 mm
- Hinge / lock stile: 60 × 70 mm
- Continuous gap cover strips
- Mounting block / screws
- Material: aluminium
Posts
- Direct connection to the fence post
- Door opening on site: 180°
- 3D hinge mounting
- U-mounting plate incl. hinge groove block
- M12 eye bolt
- LOCINOX mounting plate with Quick-Fix set
- RAL 7016 Anthracite Grey, fine texture
Produktdetails
- Distanz: 9 mm
- Variante: links
- Color: Anthrazitgrau Feinstruktur
- Height: 1000 mm
- width: 1040 mm
