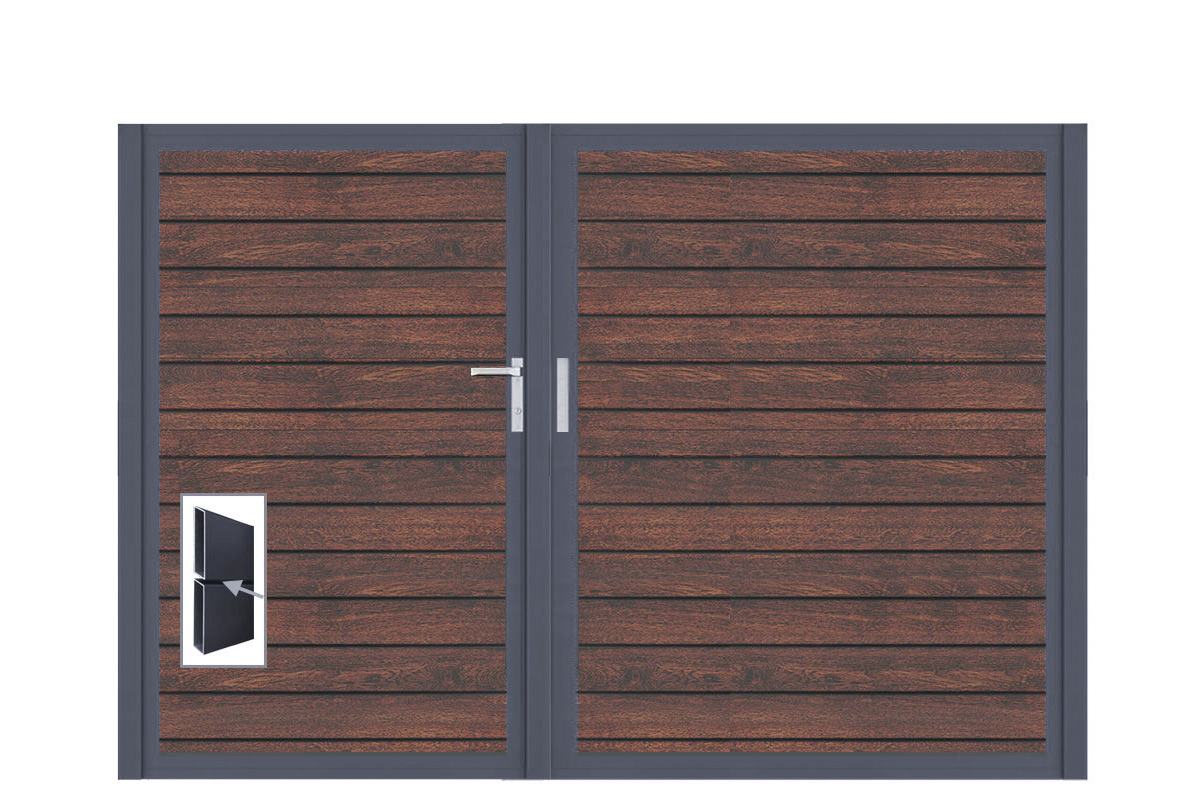

VIDUAL Swing Pure 100 Double-Leaf Gate
Artikelnummer: VDSWP21000923AOR16DO
Product information "VIDUAL Swing Pure 100 Double-Leaf Gate"
For the VIDUAL modular fence series, we also offer matching privacy gates – even for individually designed fences, it is possible to configure suitable gates. These gates are manufactured to the same high quality as our fence profiles and are characterized by their easy installation. They are the perfect complement for your entrance, providing a complete and reliable privacy solution for your garden.
Gate VIDUAL Swing Pure – Double-Leaf
- Gate heights: 980 mm, 1200 mm, 1420 mm, 1530 mm, 1750 mm
- Variant: Double-leaf gate system
- Opening angle: 180°
- Clear widths: 2035 mm, 2325 mm, 2615 mm, 2905 mm, 3195 mm, 3485 mm, 3775 mm
- Frame: Rectangular tube 60/65 mm, aluminum, powder-coated
- Colors: RAL 7016 FS (Anthracite Gray Fine Structure), Dark Oak
- Panels: VIDUAL Pure – 7016 FS
- Spacers: 10 mm
- Gate posts: Existing fence posts
- Includes: matching hardware set
- Variants: Pedestrian leaf on right/left when viewed from the outside (in relation to rhombus panels) – not required for symmetric gates as they can simply be rotated
Panels
- Optional fillings from the VIDUAL series
Lock Set
- Mortise lock with profile cylinder
- Aluminum handle set
- Long escutcheon
Gate Frame
- Top/bottom rail: 56 × 68 mm
- Hinge/lock rail: 60 × 70 mm
- Continuous gap cover strips
- Mounting block / screws
- Material: Aluminum
Posts
- Direct connection to fence posts
Hinge Set
- Gate opens up to 180°
- 3D hinge suspension
- U-mounting bracket with hinge insert
- M12 eye bolt
- LOCINOX mounting bracket with Quick-Fix set
Gate Frame Color
- RAL 7016 Anthracite Gray Fine Structure
Produktdetails
- Distanz: 9 mm
- Variante: links
- Color: Dark Oak
- Height: 1600 mm
- width: 2325 mm
